Place of Origin: China (Mainland)
Brand Name: Mashin

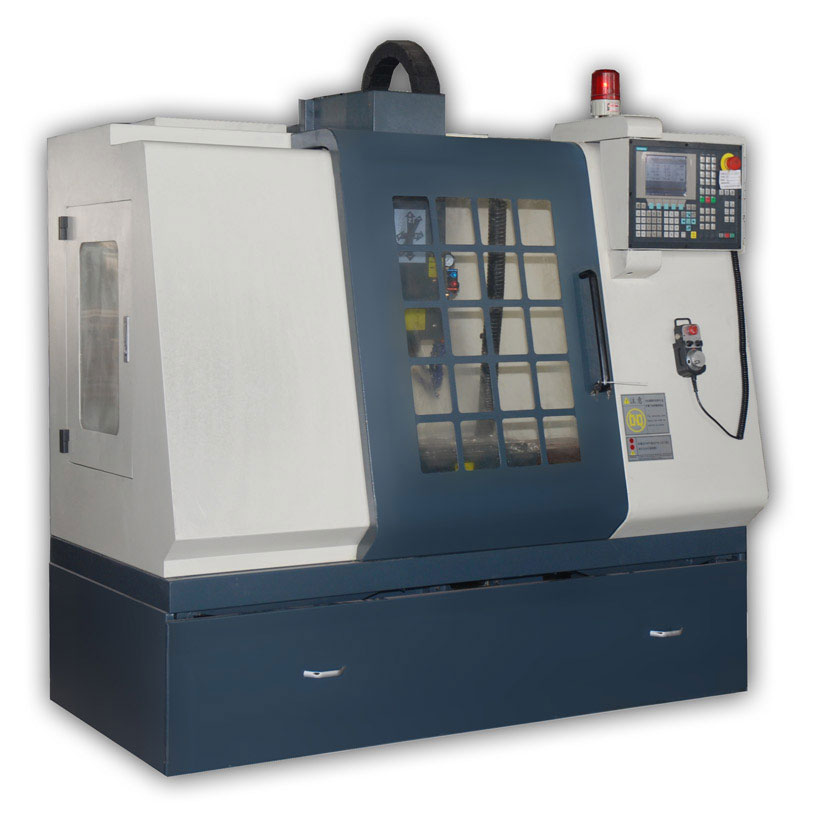

Model Number: CK0824
CNC or Not: CNC
Controlling Mode: CNC
Precision: Precision
Processing Types: Metal
Automatic Grade: Automatic
Workpiece and Weight: Instrument Machine Tool
Processing: Milling Machine
Usage: CNC traning and education
Specifications for XK0824 Item XK0824 Table size 800×240mm Max. table loading 50kg X/Y/Z axis travel 400/220/400mm Spindle speed range 1001500rpm Spindle taper 7:24 Spindle nose to table distance 38-430mm Rapid traverse rate 3000mm/min Positing accuracy ±0.015mm Spindle motor 1.5kw Least input unit 0.001mm Type of tool changer -- Tool selection -- ATC number of tools -- Repeatability ±0.01mm Dimension 1900/1250/2200mm weight 1200kgsPackaging & Delivery
Packaging Details: in wooden case or wooden pallet Delivery Detail: 30 days after order Specifications
Machine designed for CNC education but also suitable for small non ferrous metal and plastic workpiece. and sample making.
