  • Product Description

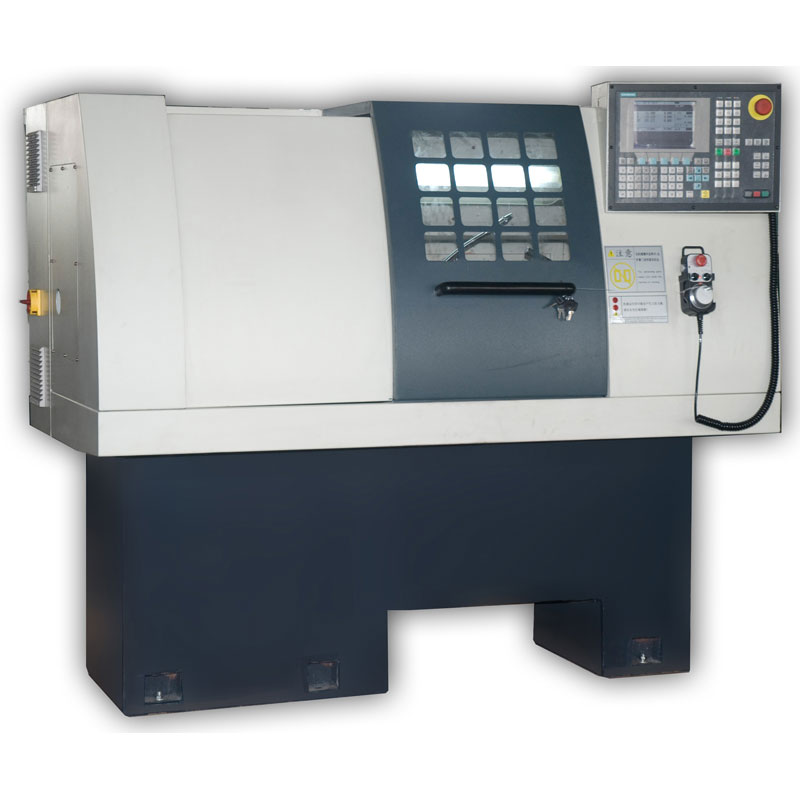

    • Product Name:CNC lathe for education
    • Product ID:7456
    • Download:Click to download
    • 分享到:
  • Details
  • Quick Details

    • Condition: New

    • Type: Turning Center

    • CNC or Not: CNC

    • Place of Origin: Jiangsu, China (Mainland)

    • Brand Name: Mashin

    • Model Number: Ck0630

    Packaging & Delivery

    Packaging Details:in wooden case
    Delivery Detail:30 days after order

    Specifications

    As a lathe special for training, it can work independently or be connected with the the training platform or simulation software



    CK0630 and XK8024 is economic CNC machines designed for the CNC lab which including typical functions of the CNC machine tools. It is one of the ideal equipments for CNC operation and program practice training


    Specifications

    Item

    CK0630

    Max. swing over bed

    300mm

    Max. swing over slider

    155mm

    Max. turning diameter over slider

    155mm

    Max. turning length

    400mm

    Spindle nose type

    ISO A2-3

    Turret

    4 stations electric turret

    Tool holder size

    12×12mm

    Travel of tailstock

    100mm

    Taper of tailstock sleeve

    MT3

    X axis Travel

    155mm

    Z axis Travel

    450mm

    X/Z rapid traverse

    4/6 m/min

    Spindle speed

    100-1800r/min stepless

    Spindle motor

    2.2kw

    Least input unit

    0.001mm

    X/Z axis repeatability

    ±0.01/0.025mm

    Interface

    RS-232 and DNC function

    Dimension

    1550×800×1550mm

    Machine weight

    850kg
