  • Product Description

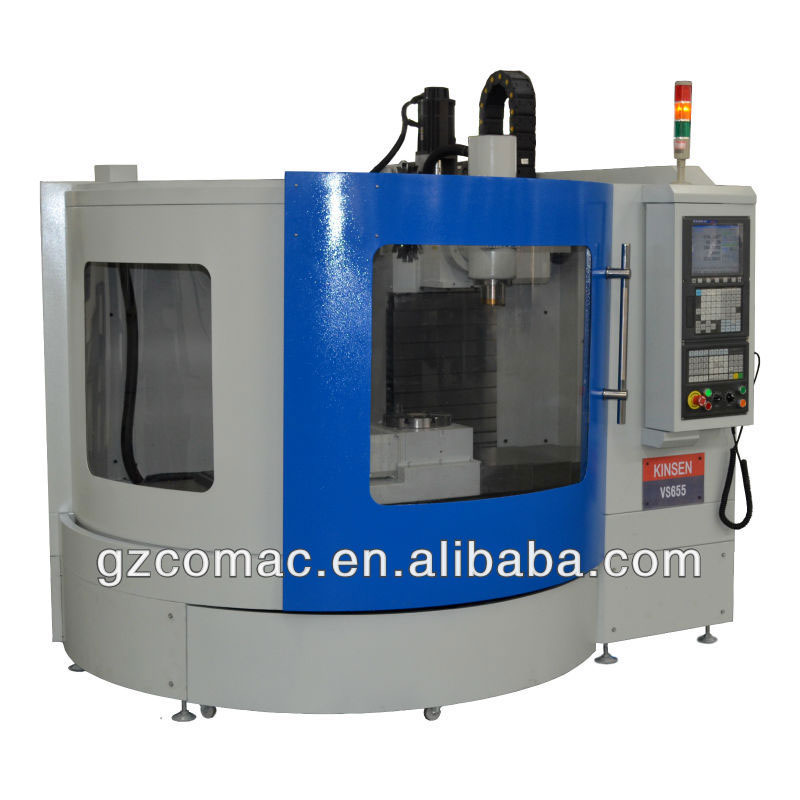

    • Product Name:economical type 5 axis machining center for education and industrial proposal
    • Product ID:7846
    • Download:Click to download
    • 分享到:
  • Details
  • Quick Details

    • Condition: New

    • Type: Vertical

    • Place of Origin: China (Mainland)

    • Brand Name: Kinsen

    • Model Number: VS655

    • Voltage: 380v 3 phases

    • Power(W): 5.5

    • Dimension(L*W*H): 2.2*2.4*2.5

    • Weight: 3.2

    • standard: blue white

    Packaging & Delivery

    Packaging Details:export wooden case
    Delivery Detail:60 days

    Specifications

    economical 5 axis CNC machining center for education and industrial proposal, with high spindle speed, suitable for engraving ,





    COMMERICAL 5 AXIS MACHINING FOR EDUCATION   AND INDUSTRIAL PROPOSAL



    VS655 is a   complex 5 axis CNC machine designed for education proposal, and also one of the best choice for the cutting of Complicated Aluminum   alloy, copper,   nonferrous metals workpice, such as the tin status,   electrical poles for EDM machine, architectures mold, new production rapid   proto typing.

    Program can be   design with CAD and CAM, such as Mastercam, UG, and Pro E.





    The 5 axis CNC   system GSK25i, which is a CNC system from the top CNC manufacturer in China,   design with all ISO standard CNC features like the top level CNC system.

    GSK 25i Milling   Machining CNC system , a new generation of CNC device, developing by GSK with   full heart. It is featured by high precision, great performance, 5 axes   simultaneous control and closed-loop control (half closed-loop control and   full closed-loop control) and can be widely applied in CNC milling machine   and machining center.

    Optional CNC   system such as Siemens 840D, Heidenhain, Fagor is available for different kind of   applications.





    ISO G Code

    Network communiction   function


    COMMERICAL 5 AXIS MACHINING FOR EDUCATION   AND INDUSTRIAL PROPOSAL



    Machining of   Turbines and Turbine blades, B axis with a swivel angle up to -110 degree. Motorized   spindle with BT30 spindle nose. Standard spindle speed 18000rpm, and 24000rpm is optional.





    12 position ATC   can meet the tool requirement for most of complicated machining.

    Horizontal ATC   design make the tool changing easy and no interference.

    Rotary table

    Big Operation   space ,suitable for teaching show
