KFL系列
Quick Details
Place of Origin: Liaoning, China (Mainland)
Brand Name: COMAC
Model Number: SP/SF series
Condition: New
SP5200*70 Press Machine parameter for 70mm press plate Max. pressure 10000kn Max Plate thickness (Q235) 70mm Inner dimension of machine frame 6400*2800mm Machine frame plate thickness 60mm diameter of Hydraulic Cylinder 800mm Table size 1.4X1.4m Pressure of Hydraulic system 25.5Mpa Max Load of controllable slider Meet the requirement of end cover 5.2m*70 Main Motor power capacity 75kWX2 Machine weight 160-170Ton Remarks: the standard machine frame plate thickness is 36mm. For the 25.5Mpa Hydraulic , there will be two Hydraulic pumps capacity 250L each. The standard machine only one Pump. Parameter for flanging machine SF5200*32 Flanging diameter HAD 1800-5200mm With fixture 900-5200mm Flanging thickness 4-32mm Hydraulic pressure for flanging 25Mpa Main motor Power capacity 75KW Power supply 380v 3 phases Machine weight 75T SP6500*70 Press Machine parameter Max. pressure 10000kn Max Plate thickness (Q235) 70mm Inner dimension of machine frame 7500*3000mm Table size 1.4X1.4m Machine frame plate thickness 60mm diameter of Hydraulic Cylinder 800mm Pressure of Hydraulic system 25.5Mpa Max Load of controllable slider Meet the requirement of end cover 6.5m*32MM Main Motor power capacity 75kWX2 Machine weight 180-190T (around) For the 25.5Mpa Hydraulic , there will be two Hydraulic pumps capacity 250L each. Parameter for flanging machine SF6500*40 Flanging diameter HAD 1800-5200mm With fixture 900-5200mm Flanging thickness 4-32mm Hydraulic pressure for flanging 25Mpa Main motor Power capacity 75KW Power supply 380v 3 phases Machine weight 80T Remarks; The machine they just give us the total weight of Press and flanging, for FX5200*3 is 160Ton, For FX6500*40 is around 180-200Ton. The weight for the single machine may be changed upon the final design.Packaging & Delivery
Packaging Details: nude, spare parts in wooden cases Delivery Detail: 3 months after advance payment Specifications

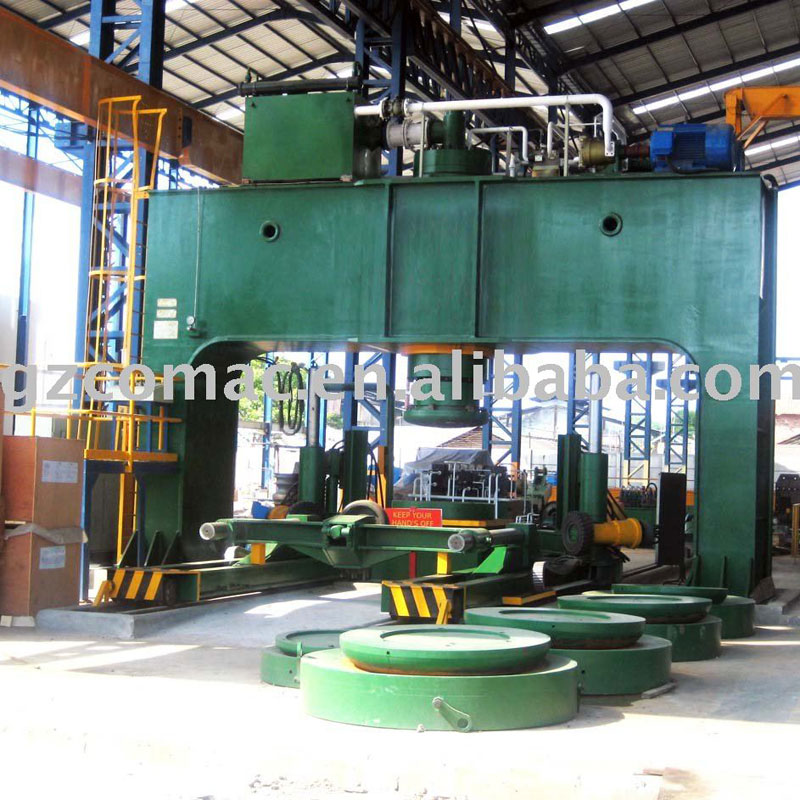

Hydraulic Pressing and flanging machine for Boiler End head, LPG tank Head head, LNG tank End head, Spherical tank petal plate.
