  • Product Description

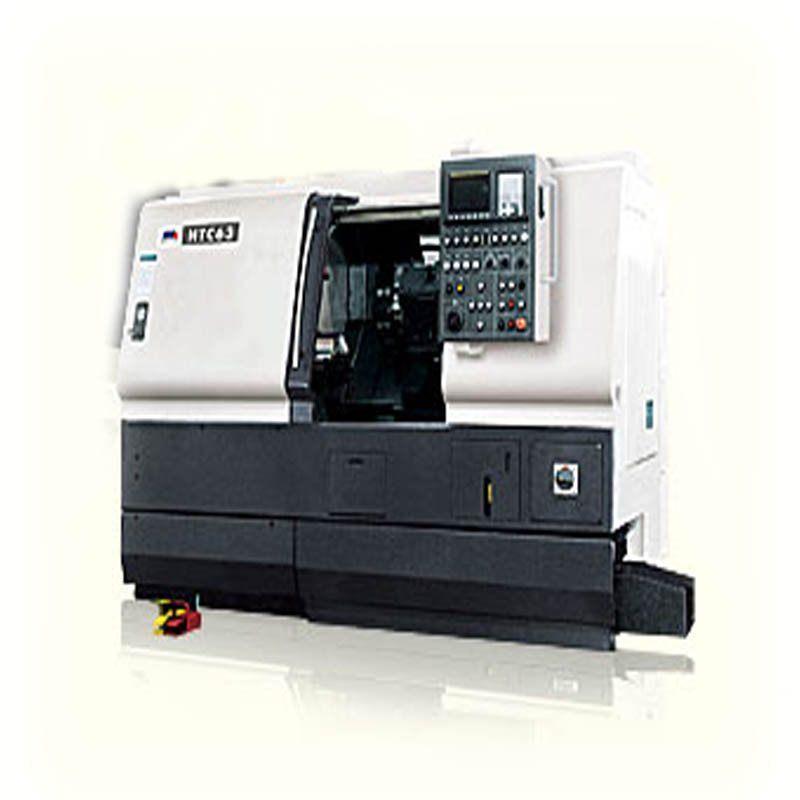

    • Product Name:Special offer of CNC slant bed lathe HTC1635N
    • Product ID:455
    • Download:Click to download
    • 分享到:
  • Details
  • Quick Details

    • Condition: New

    • CNC or Not: CNC

    • Place of Origin: Liaoning, China (Mainland)

    • Brand Name: SMTCL

    • Model Number: HTC1635N

    Packaging & Delivery

    Packaging Details:wooden case
    Delivery Detail:15 sets in stock

    Specifications

    CNC slant bed lathe in stock with special price, fully new machine with 6" hydraulic chuck and 8 position Hydraulic turret

    45 Degree sland bed CNC lathe with high performance controller GSK980TD, which is compatibale with Fanuc and Mitsubishi system in Program code and operation mode, with English and Chinese languae selectable.


    Standard configuration for this lathe:

    English operation panel

    full set English operation manual

    NSK spindle bearing

    Taiwan Hydraulic chuck and cylinder 6"

    THK linear guideways

    All component for Domestic market

    Voltage: 380v 3 phase 50HZ


    Brand new machine in stock 15units.


    big discount sales



    Specification

    Item

    Unit

    Specification

    Max. swing over bed

    mm

    Φ400

    Max. turning length

    mm

    350

    Max. turning diameter

    mm

    160

    Max. swing over slider

    mm

    160

    Spindle nose type

    -

    A25

    Spindle hole diameter

    mm

    43

    Spindle speed step

    -

    No step

    Spindle speed range

    r/min

    200-4000

    Spindle motor power

    kW

    5.5

    Hydraulic chuck

    -

    6

    Turret

    -

    8 positions hydraulic

    Tool change time

    S

    0.9

    Repeatability of Turret

    Sec

    ±2

    Tool dimension

    mm


    Tailstock sleeve diameter

    mm

    60

    Tailstock sleeve taper

    -

    MT4

    Tailstock sleeve travel

    mm

    80

    X axis travel

    mm

    110

    Z axis travel

    mm

    380

    X/Z rapid transverse speed

    m/min

    linear Guideway: 6/10

    Machine weight

    kg

    3000

    Max. loading

    kg

    Disc type75;axle type300

    CNC system

    -

    Guangzhou CNC GSK980TD servo

    Workpiece roughness finish

    μm

    Ra0.8

    Workpiece precision

    -

    IT6

    Machine dimensionL×W×H

    mm

    2300×1430×1800

    THK guideway,Hydraulic tailstock,NSK Spindle bearing.
