KFL系列
Quick Details
Condition: New
Type: Vertical
Place of Origin: Jiangsu, China (Mainland)
Brand Name: COMC/Kinsen
Model Number: VS3060
standard: white
Small model for Training and production proposal with GSK25I CNC system , VS3060 is a perfect model for lab usage, the still can learn how to program and machine complex workpiece. Main specifications: Descriptions Specification VS3060 VS4080 Table size 400*1000 500*1200 Rotation Table φ250 φ320 Travel 600*400*450 800*500*500 Max. Work piece diameter φ300 φ400 Max. Table loading 400KG 600KG Spindle size (Motorized spindle) BT30 BT40 B/C axis rotary table specification CNC170R CNC250R Spindle swiveling angle ±110 ±110° ATC type( Optional) BT30 BT40 Tool Magazine capacity 16T 20T Max. spindle speed 15000r/min 15000r/min Spindle power 7.5KW 12KW Ball scre Nan gong Ball screw bearing NSK NSK Positioning accuracy of Linear axis 0.005 0.005 Positioning accuracy of B/C axis 5” 5” Rapid travel speed of linear axis ≥15000MM/MIN machine Cover Full cover Lubrication system Automatic CNC system GSK-25i/Siemens 840D Gross Weight 3T 7T Production typePackaging & Delivery
Packaging Details: in export package Delivery Detail: in 7 months Specifications

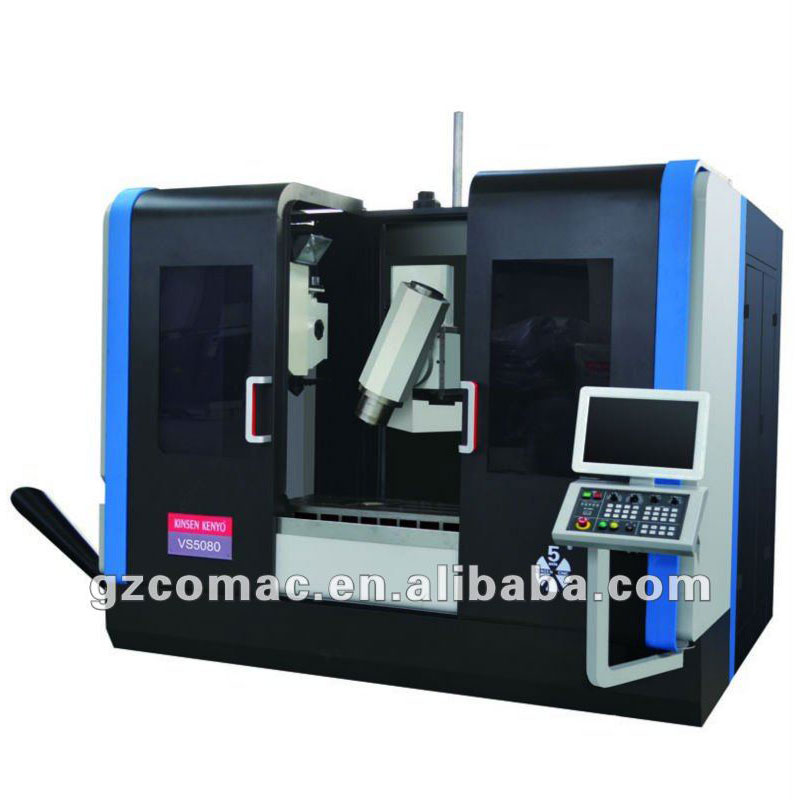

5 axis CNC milling center for both Traing and production proposal
economic, high efficiency
