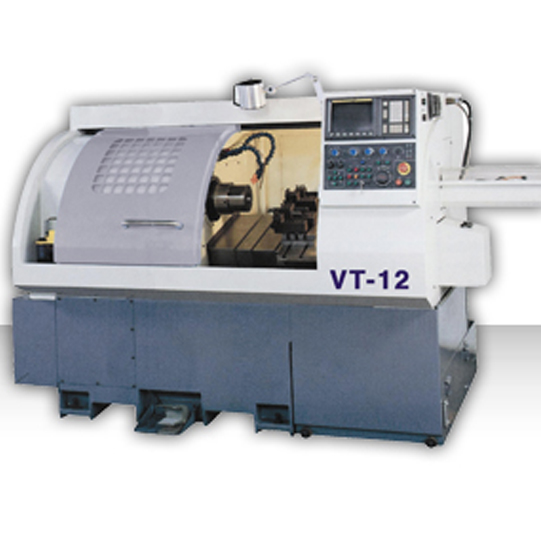

| SPECIFICATIONS | Unit | VT-12 | VT-12T |
| CAPACITY |
|---|
| Swing over Z way cover | mm(inch) | 400(15.75") | 400(15.75") |
| Max. turning diameter | mm(inch) | 180 (7.08") | 180 (7.08") |
| Swing over cross slide | mm(inch) | 120 (4.72”) | 120 (4.72”) |
| Max. turning length | mm(inch) | 150(5.9") | 150(5.9") |
| TRAVEL |
|---|
| X-axis travel | mm(inch) | 300(11.8") | 217(8.54") |
| Z-axis travel | mm(inch) | 290(11.4") | 220(8.66") |
| SPINDLE |
|---|
| Type of spindle nose | ISO | A2-6 | A2-6 |
| Chuck diameter | mm(inch) | 204(8”) | 204(8”) |
| Spindle bearing inner diameter | mm(inch) | 110 (4.33”) | 110 (4.33”) |
| Through spindle hole diameter | mm(inch) | 62 (2.44") | 62 (2.44") |
| Through bar capacity | mm(inch) | 52 (2") | 52 (2") |
| Spindle drive motor(cont/30min) | KW (Hp) | 11(15) | 11(15) |
| Spindle speed range | rpm | 5000 |
| TURRET |
|---|
| Number of tool stations |
|
| 8 (SW=220) |
| Turret type |
| GANG TYPE | STATIC |
| Turret indexing time | sec |
| 0.9 |
| Shank height of square tool | mm(inch) |
| 20 (0.78”) |
| Shank diameter for boring bar | mm(inch) |
| 25 (1”) |
| FEEDRATE |
|---|
| Rapid traverse rate X-axis | mm/min | 10000 | 10000 |
| Rapid traverse rate Z-axis | mm/min | 10000 | 10000 |
| Ballscrew diameter of X-axis | mm(inch) | 28*P6 | 28*P6 |
| Ballscrew diameter of Z-axis | mm(inch) | 28*P6 | 28*P6 |
| TAILSTOCK |
|---|
| Tailstock travel | mm(inch) |
|
|
| Tailstock spindle diameter | mm(inch) |
|
|
| Tailstock spindle travel | mm(inch) |
|
|
| Taper hole of tailstock spindle |
|
|
|
| REMARKS |
|---|
| Coolant pump motor | Kw (Hp) | 0.6(3/4) | 0.6(3/4) |
| Coolant tank capacity | L | 200 | 200 |
| Floor space | mm(inch) | 2468*2213 (97.1"* 87.1”) | 2468*2213 (97.1"* 87.1”) |
| Machine weight | Kg (lb) | 2400(5280) | 2550(5610) |
