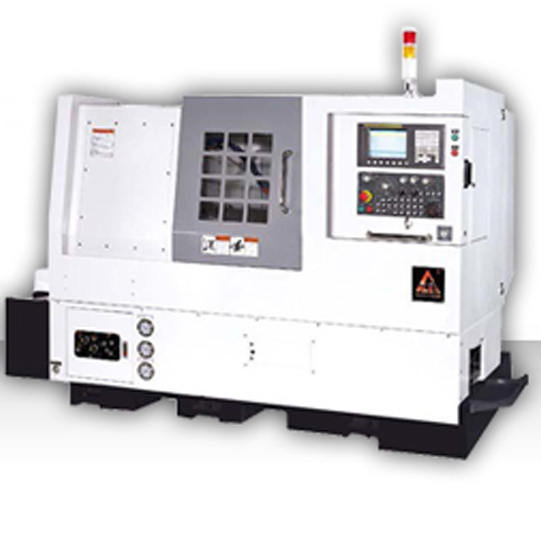

| SPECIFICATIONS | Unit | VT-15 | VT-17 |
| CAPACITY |
|---|
| Swing over Z way cover | mm(inch) | 480 (18.9”) | 480 (18.9”) |
| Max. turning diameter | mm(inch) | 390 (15.3”) | 390 (15.3”) |
| Swing over cross slide | mm(inch) | 280 (11) | 280 (11) |
| Max. turning length | mm(inch) | 370 (14.6") | 370 (14.6") |
| Slide way slant angle | degree | 30 | 30 |
| TRAVEL |
|---|
| X-axis travel | mm(inch) | 200 + 15 (7.87”+0.59”) | 200 + 15 (7.87”+0.59”) |
| Z-axis travel | mm(inch) | 470(18.5) | 470(18.5) |
| SPINDLE |
|---|
| Type of spindle nose | ISO | A2-5 | A2-6 |
| Chuck diameter & type(option) | mm(inch) | 152(6”) | 204(8”) |
| Spindle bearing inner diameter | mm(inch) | 90 (3.5”) | 110 (4.3”) |
| Through spindle hole diameter | mm(inch) | 51 (2.0”) | 61 (2.4”) |
| Through bar capacity | mm(inch) | 42 (1.7”) | 51 (2.0”) |
| Spindle drive motor(cont/30min) | KW (Hp) | 11 (15) | 11 (15) |
| Spindle speed range | rpm | 6000 | 5000 |
| TURRET |
|---|
| Number of tool stations |
| 12 (SW=316) | 12 (SW=316) |
| Turret type |
| STATIC | STATIC |
| Turret indexing time | sec | 0.8=Hydraulic Driven |
| Turret indexing time | sec | 0.15=Servo Driven |
| Live tool speed | rpm | 6000 | 6000 |
| Live tool power(30min) | hpKW) | 5.0(3.5) | 5.0(3.5) |
| FEEDRATE |
|---|
| Rapid traverse rate X-axis | M/min(ipm) | 20(787) | 20(787) |
| Rapid traverse rate Z-axis | M/min(ipm) | 20(787) | 20(787) |
| Ballscrew diameter of X-axis | mm(inch) | 28*P6 | 28*P6 |
| Ballscrew diameter of Z-axis | mm(inch) | 32*P10 | 32*P10 |
| TAILSTOCK |
|---|
| Tailstock travel | mm(inch) | 300 (11.8”) | 300 (11.8”) |
| Tailstock spindle diameter | mm(inch) | 60(2.4”) | 60(2.4”) |
| Tailstock spindle travel | mm(inch) | 80(3.14”) | 80(3.14”) |
| Taper hole of tailstock spindle |
| MT-4 | MT-4 |
| REMARKS |
|---|
| Power requirements | V(kVA) | 208(20)3 Phase | 208(20)3 Phase |
| Coolant pump motor | Kw (Hp) | 0.6 (0.75) | 0.6 (0.75) |
| Coolant tank capacity | L | 205 | 205 |
| Floor space | mm(inch) | 2550*2010(100"*79") | 2550*2010(100"*79") |
| Machine weight | Kg (lb) | 3700 (8,140) | 3750 (8,250) |
