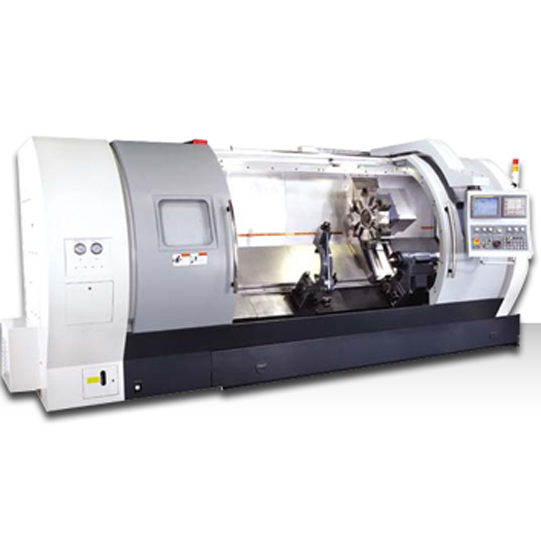

| SPECIFICATIONS | Unit | VT-36B(1000/1500/2000/3000) | VT-36C(1000/1500/2000/3000) |
| CAPACITY |
|---|
| Swing over Z way cover | mm(inch) | 800 (31.5”) |
| Max. turning diameter | mm(inch) | 630 (24.8”) |
| Swing over cross slide | mm(inch) | 630 (24.8”) |
| Max. turning length | mm(inch) | 950(37.4") / 1450(57") / 1950(76.7") / 2950(116.1") |
| Slide way slant angle | degree | 45+15 |
| TRAVEL |
|---|
| X-axis travel | mm(inch) | 315+30 (12.4"+1.18") |
| Z-axis travel | mm(inch) | 950(37.4") / 1450(57") / 1950(76.7") / 2950(116.1") |
| SPINDLE |
|---|
| Type of spindle nose | ISO | A2-11 | A2-15 |
| Chuck diameter & type(option) | mm(inch) | 380(15”) | 457(18”) |
| Spindle bearing inner diameter | mm(inch) | 180 (7.08”) | 240 (9.44”) |
| Through spindle hole diameter | mm(inch) | 131(5.15") | 185(7.28") |
| Through bar capacity | mm(inch) | 115(4.52”) | 159(6.25") |
| Spindle drive motor(cont/30min) | KW (Hp) | 37 (50) | 37 (50) |
| Spindle speed range | rpm | 2000 | 1000 |
| TURRET |
|---|
| Number of tool stations |
| 12 (SW=490) |
| Turret type |
| STATIC |
| Turret indexing time | sec | 0.9 |
| Shank height of square tool | mm(inch) | 32 (1.26”) |
| Shank diameter for boring bar | mm(inch) | 60 (2.36") |
| FEEDRATE |
|---|
| Rapid traverse rate X-axis | M/min | 20 |
| Rapid traverse rate Z-axis | M/min | 24 |
| Ballscrew diameter of X-axis | mm(inch) | 32*P10 |
| Ballscrew diameter of Z-axis | mm(inch) | 40*P10 |
| TAILSTOCK |
|---|
| Tailstock travel | mm(inch) | 1015(40") / 1515(59.6") / 2015(79.3") / 3015(118.7") |
| Tailstock spindle diameter | mm(inch) | 150(5.9') |
| Tailstock spindle travel | mm(inch) | 130(5.19") |
| Taper hole of tailstock spindle |
| MT-6 |
| REMARKS |
|---|
| Coolant pump motor | Kw (Hp) | 0.6(0.75) |
| Coolant tank capacity | L | 216 / 270 / 324 / 378 |
| Floor space | mm(inch) | 2450(96.4")(W) x 5450(214.5") L=1000 |
| 2450(96.4")(W) x 5950(234.2") L=1500 |
| 2450(96.4")(W) x 6450(253.9") L=2000 |
| 2450(96.4")(W) x 7450(293.3") L=3000 |
| Machine weight | Kg (lb) | 8700(19140) |
| 9800(21560) |
| 10900(23980) |
| 13100(28820) |
