  • 产品描述

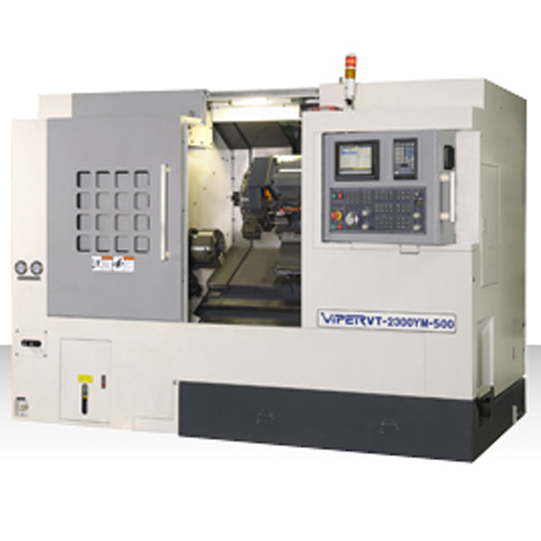

    • 产品名称:YMS Series
    • 产品编号:VT-2100YMS/YM
    • 资料下载:点击下载
    • 分享到:
  • 详细信息
  • SPECIFICATION

    SPECIFICATIONSUnitVT-2100 YMSVT-2100 YM
    CAPACITY
    Swing over Z way covermm(inch)600  (23.6”)
    Max. turning diametermm(inch)300 (11.8")
    Swing over cross slidemm(inch)380 (14.96”)
    Max. turning lengthmm(inch)505 (19.8") / 1070 (42.1")545 (21.4") / 1070 (42.1")
    Slide way slant angledegree30+30
    TRAVEL
    X-axis travelmm(inch)180+100 (7.08" + 3.9")
    Y-axis travelmm(inch)60/-60 (2.4"/-2.4")
    Z-axis travelmm(inch)550 (21.6") / 1080 (42.5")550 (21.6") / 1080 (42.5")
    W-axis travelmm(inch)510 (20") / 1200 (47.2")-
    SPINDLE
    Type of spindle noseISOA2-6A2-6
    Main spindle through capacitymm(inch)62(2.4")
    Main chuck typemm(inch)203(8")
    Main spindle through bar capacitymm(inch)52(2.1")
    Main spindle speedrpm4500
    Main spindle drive motor(cont/30min)KW (Hp)15(20)
    Sub. chuck typeinch152 (6")-
    Sub. spindle drive motor(cont/30min)KW (Hp)5.6 (7.5)-
    Sub. spindle speedrpm5000-
    Sub. spindle through bar capacity
    42(1.7")-
    MOTOR
    X-axis servo motor
    α22  , 5.4HP
    Y-axis servo motor
    α22  , 5.4HP
    Z-axis servo motor
    α22  , 5.4HP
    TURRET
    Turret type
    VDI40 (SW=320)
    Shank height of square toolmm(inch)25 (1”)
    Shank diameter for boring barmm(inch)40 (1.6”)
    TorqueNM2236
    FEEDRATE
    Ballscrew diameter of X-axismm(inch)Ø28XP6(Ø1.1"XP0.2)
    Ballscrew diameter of Z-axismm(inch)Ø40XP10(Ø1.6"XP0.4)
    Ballscrew diameter of Y-axismm(inch)Ø32XP8(Ø1.3"XP0.3)
    Ballscrew diameter of W-axismmØ40 X P10 (Ø1.6" X P0.4)-
    TAILSTOCK
    Tailstock spindle diametermm(inch)-85(3.4")
    Tailstock spindle travelmm(inch)-80(3.2")
    Taper hole of tailstock spindle
    -MT4
    REMARKS
    Floor space(Without chip conveyor)mm(inch)3510 (138.1")(L) * 2310 (90.9")(W) * 2403 (94.6")(H) L=0.5M
    4010 (157.8")(L) * 2310 (90.9")(W) * 2403 (94.6")(H) L=1M
    Machine weightKg 7000(0.5M) / 7500(1M)

    Design and specifications are subject to change without prior notice. "*" is Optional Accessory
