  • 产品描述

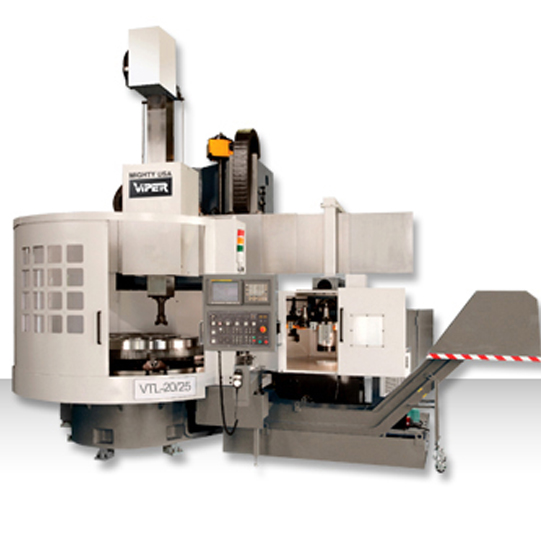

    • 产品名称：Vertical Turning Lathe
    • 产品编号：VT-12/16(M)
    • 资料下载：点击下载
    • 分享到：

上一页：Precision producton Centers

下一页：已经是最后一页

  • 详细信息
  • STANDARD FEATURES

    Table Index Speed 3 min-1

    C-Axis Feed Rate 0~800 deg/min
    AC Main Drive Motor for Table 60 Horsepower (30 min, rating)
    Adjustable Cross Rail, with Five (5) Auto Cross Rail Positions
    Automatic Forced Lubrication System
    Chip Conveyor System
    Chip cover/ Splash Guards/ Sliding Doors
    Coolant System and Coolant Through the Ram
    Fanuc System OiTC CNC Controller
    4-Jaw Independent 63"/ 1600mm Dia. for VTL-16/20(M) and 78.75"/ 2000mm Dia.
    VTL-20/25(M) Manual Chuck Table with Top Jaws
    Foundation Parts Kit One (1) Set
    High Quality Cast Iron Construction
    Standard 12 Tools [VTL-16/20 and 20/25] or 18 Station [VTL-16/20(M), 20/25(M)] (Option) Auto Tool Changer System
    Square Carbon Steel Ram 9" (228.6mm) w/Vertical Ram Travel 39 3/8" (1000mm)
    Telescopic Steel covers For Cross Rail
    Standard Features and Accessories
    Control Warranty Two (2) Years
    Machine Warranty One (1) Year


    SPECIFICATION

    SPECIFICATIONSUnitVTL-12/16 (M)VTL-16/20(M)VTL-20/25(M)

    Table Diametermm/ Inch ψ1250/49.2ψ1,600/ 63ψ2,000/ 78.75
    Max. Turning Diametermm/ Inch1600/62.99ψ2,000/ 78.75ψ2,440/96"
    Max. Swingmm/ Inch1600/62.99ψ2,000/ 78.75ψ2,500/ 98.4
    Max. Turning Heightmm/ inch1250/491,500/ 59.061,500/ 59.06
    Max. Mass of Workpiecekg/ Lbs5900/1300015,000/ 33,00020,000/ 44,000
    Max. Torque of TableNM/ lbs-ft11,870/ 8,75420,000/ 14,75024,600/ 18,142
    Max. Cutting ForceN / Lb18,992/  4,26325,000/ 5,62024,600/ 5,522

    X axis Strokemm/ inch1405(-200+1205)/55.3"1,635/ 64.371,785/ 70.27
    X axis ballscrew diametermm/ inch63XP12 / 2.5XP0.563XP12 / 2.5XP0.563XP12 / 2.5XP0.5
    X axis TorqueNM/ lbs-ft114/83.9114/83.9114/83.9
    Z axis Strokemm/ inch1000/39.41,000/ 39.41,000/ 39.4
    Z axis ballscrew diametermm/ inch50XP10 / 2XP0.3950XP10 / 2XP0.3950XP10 / 2XP0.39
    Z axis TorqueNM/ lbs-ft72/53114/83.9114/83.9

    Ram Sizemm/ inch230×230/ 9.06×9.06230×230/ 9.06×9.06230×230/ 9.06×9.06
    Min. I.D. for Ram Passmm/ inchψ330/13ψ330/13ψ330/13
    　
    Table Speed(2 steps)rpm1~120,100~3501~91, 85~2501~73, 65~200
    Rapid traverse (X axis)mm/min12,00012,00012,000

    		inch/min472472.5472.5
    Rapid traverse (Z axis)mm/min10,00010,00010,000

    		inch/min393393393
    Crossrail Strokemm/ inch600/23.6800/31.5800/31.5
    Crossrail Stepmm/ inch xstep step200x4/7.87x4200x5/7.87x5200x5/7.87x5

    Table Main Motorkw37/30(a30) / [45/37(a40)]45/37(a40)45/37(a40)

    		HP50/40 [60/50]60/5060/50
    X axis Servo MotorKw/HP6.0/8.0(a40)6.0/8(a40)6.0/8(a40)
    Z axis Servo MotorKw/HP6.0/8.0(a40)6.0/8.0(a40)6.0/8.0(a40)
    ACT Servo MotorKw/HP1.4/2.0(a4)0.75/1.0(a4)0.75/1.0(a4)
    Hydraulic Motorkw3.751.51.5

    		HP522
    Crossrail Motorkw5.55.55.5

    		HP7.57.57.5
    Lube. Motorkw0.750.750.75

    		HP111

    ATC Magazine CapacityTool18(Turing:9, Milling:9)18(Turing:9, Milling:9)18(Turing:9, Milling:9)
    Max. Tool Lengthmm/ inch400/15.75450/17.72450/17.72
    Max. Drill Diametermm/ inch40/1.6 ( Carbon Steel Workpiece)50.8/2 ( Carbon Steel Workpiece)50.8/2 ( Carbon Steel Workpiece)
    Max. Tap Diametermm/ inchM25/1.0 ( Carbon Steel Workpiece)M30/1.2 ( Carbon Steel Workpiece)M30/1.2 ( Carbon Steel Workpiece)
    Max. Torque for DrillingNM/ lbs-ft196/145196/145196/145
    Live Spindle Speedrpm250030~200030~2000
    Table Index Speed (C)Min 333
    Live Spindle MotorHP10/15(30min)15/20(30min)15/20(30min)

    		kwAC7.5/11(a8)AC11/15(a12)AC11/15(a12)

    Tool Shank Sizemm/ inch32x32/1.26x1.2632x32/1.26x1.2632x32/1.26x1.26
    Max. Tool Projectionmm/ inchID 175/6.89"ID 175/6.89"ID 175/6.89"
    Tool Taper
    		No. 50(BIG-PLUS)No. 50(BIG-PLUS)No. 50(BIG-PLUS)
    Pull Stud
    		P50T-1(MAS403)P50T-1(MAS403)P50T-1(MAS403)
    C-Axis Feed RateDeg/min


    Total Power CapacityKVA60(3~,208V)60(3~,208V)100(3~,208V)
    Floor Space   (LxWxH )mm5424x3727x52056182x4167x57006370x4300x5700
    inch213.5x146.7x204.9243.4x164x224.4250.8x169.3x224.4
    Machine Weightkg/ Lbs.24,000/52,80029,000/63,80032,500/71,500

    Design and specifications are subject to change without prior notice. "*" is Optional Accessory
